Calculator

Open Area Perforation Calculators

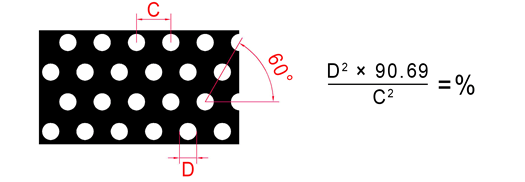

Round Perforation - 60 Degree Staggered

a plan of round perforated sheet with 60° staggered holes and its open area Calculator
D
C

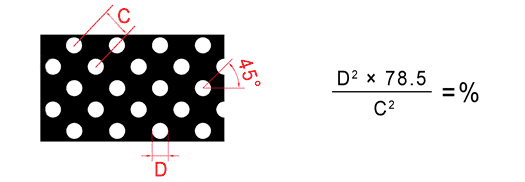

Round Perforation - 45 Degree Staggered

a plan of round perforated sheet with 45° staggered holes and its open area Calculator
D
C

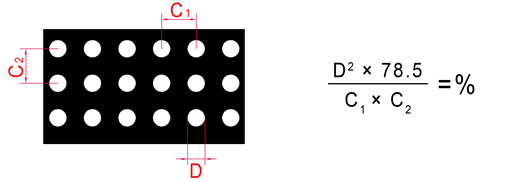

Round Perforation - Straight Line

a plan of round perforated sheet with straight holes and its open area Calculator
D
C1
C2

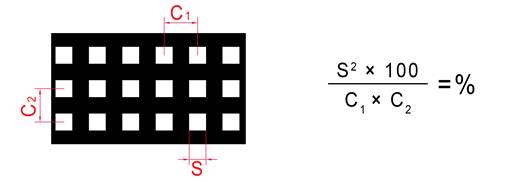

Square Perforation - Straight Line

a plan of square perforated sheet with straight holes and its open area Calculator
S
C1
C2

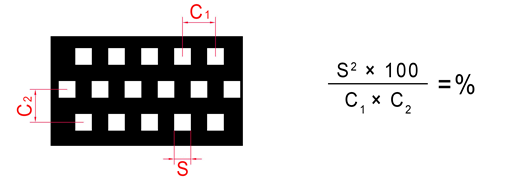

Square Perforation - Staggered

a plan of square perforated sheet with staggered holes and its open area Calculator
S
C1
C2

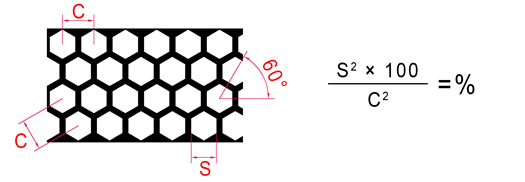

Hex Perforation

a plan of hexagon perforated sheet with staggered holes and its open area Calculator
S
C

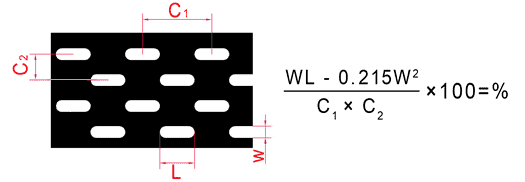

Round - End Slot - Side Staggered

a plan of slot perforated sheet with side staggered round end slots and its open area Calculator
W
L
C1
C2

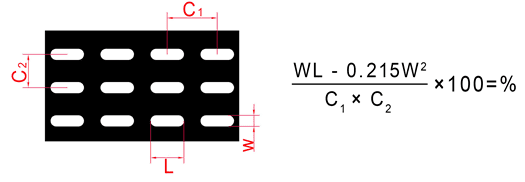

Round - End Slot - Straight Line

a plan of slot perforated sheet with straight round end slots and its open area Calculator
W
L
C1
C2

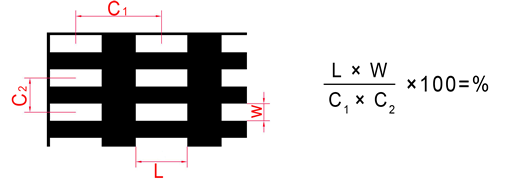

Square - End Slot - Straight

a plan of slot perforated sheet with straight square end slots and its open area Calculator
W
L
C1
C2

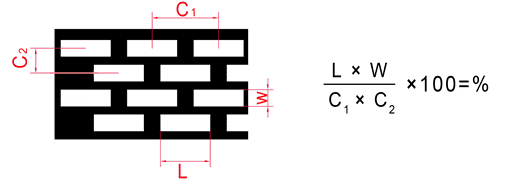

Square - End Slot - Staggered

a plan of slot perforated sheet with staggered square end slots and its open area Calculator
W
L
C1
C2
